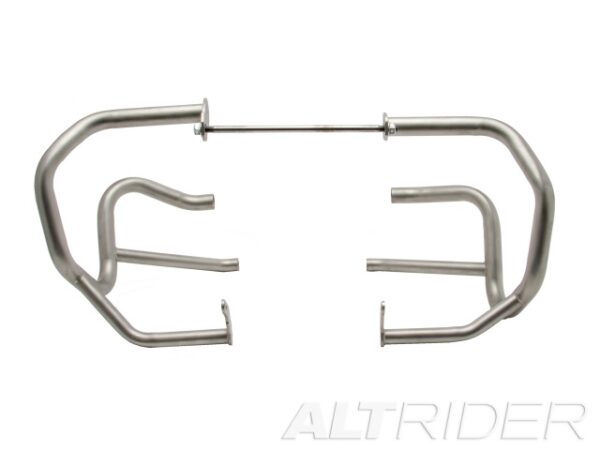

AltRider Crash Bars for the BMW R 1200 GS LC (2014+)

Beskrivning

AltRider Crash Bars for the BMW R 1200 GS LC (2014+)

Order the Crash Bars and Skid Plate together as one complete system here.

If you’ve already installed the AltRider Skid Plate mounting brackets are not required. Choose Without Brackets in the dropdown to the right.

For the first time in its 30 plus year history the R1200’s venerable boxer engine will now be water cooled. And that’s not the only ace up BMW’s sleeve for 2013.

A new bike requires new protection so AltRider completely redesigned the crash bars for the new water boxer motor. A step up from years past they utilize 1.25€œ (31.75 mm) O.D. stainless steel tubing making them the largest diameter bars on the market. The decision to increase the diameter came from years of research and production results. The West Coast BMW Off-Road Training School has been outfitting their bikes with AltRider gear for the past 3 years. This real world testing yielded much insight on how much damage large bikes can do during crashes. The 1€ bars (25.4 mm) allow a significant amount of flex during a crash creating the need to space them farther from the bike. The stout 1.25€ bars allow a tighter profile while still providing real protection. Available in shot peen satin or black powder coat finish you’ll never have to worry about rust whether you’re riding the liquid cooled GS across the highway or across a river.

The top of the bars are secured in a total of three locations per side. The front mount is the only one on the market designed to utilize 2 bolts per side to increase the ability to distribute the load of any impact. The rear is held with a custom machined through-bolt that replaces the engine mount hardware — increasing strength of the bars up to 25%. AltRider offers one of only a few designs that utilize a custom machined through-bolt. There are no plastic spacers to break upon impact. This creates an incredibly strong design that distributes any impact evenly throughout the bars and also makes a solid foundation for upper crash bars.

Another first for AltRider crash bars are the integrated 3/16€ (4.76 mm) lower flanges designed to interface with an AltRider skid plate. This creates a modular protection system that doesn’t mount directly to the motor and is substantially more robust than anything else on the market.

Other bars are fabricated by crimping then welding joints creating a forced fit with a weak bond. In this method gaps are created which are later filled with weld. The additional heat causes warpage and all-too-common installation difficulties.  All AltRider joints are 5-axis laser cut creating a perfect union before the bars are hand TIG welded in a jig. This process creates a precision fit easy installation and superior strength.

Installation is simple and straightforward.  All necessary hardware including a difficult to find T55 bit is provided with the bars.

Please note: BMW changed the design for the frame in November 2013. To tell if you need bars for the 2013 or 2014 and newer models examine the frame tab referenced in steps 5 and 9 in the installation instructions. If your tab has two holes you’ll need 2013 bars. If your tab has one hole you’ll need 2014 and newer bars.

• AltRider motorcycle accessories are 100% designed and manufactured in the USA
• 1.25€ (31.75 mm) stainless steel tubing
• 5-axis laser cut and hand TIG welded joints
• Custom machined M12 engine through-bolt heat treated and plated to Grade 8
• 40MM flange mount design increases strength exponentially
• 3/16€ (4.76mm) lower flanges integrate with AltRider skid plate
• Available in silver or black
• Weight: 12.2 lbs (5.5 kg)
